| Rated heating capacity: | 38KW | Rated input power: | 7.43KW |
|---|---|---|---|
| Rated cooling capacity: | 30KW | Rated input power: | 5.8KW |
| Compressor: | panasonic gree | Working mode: | Cooling, heating, hot water, cooling+hot water, heating+hot water |
| Circulate water pump: | NO | ||
| High Light: | |||
| Product Description |

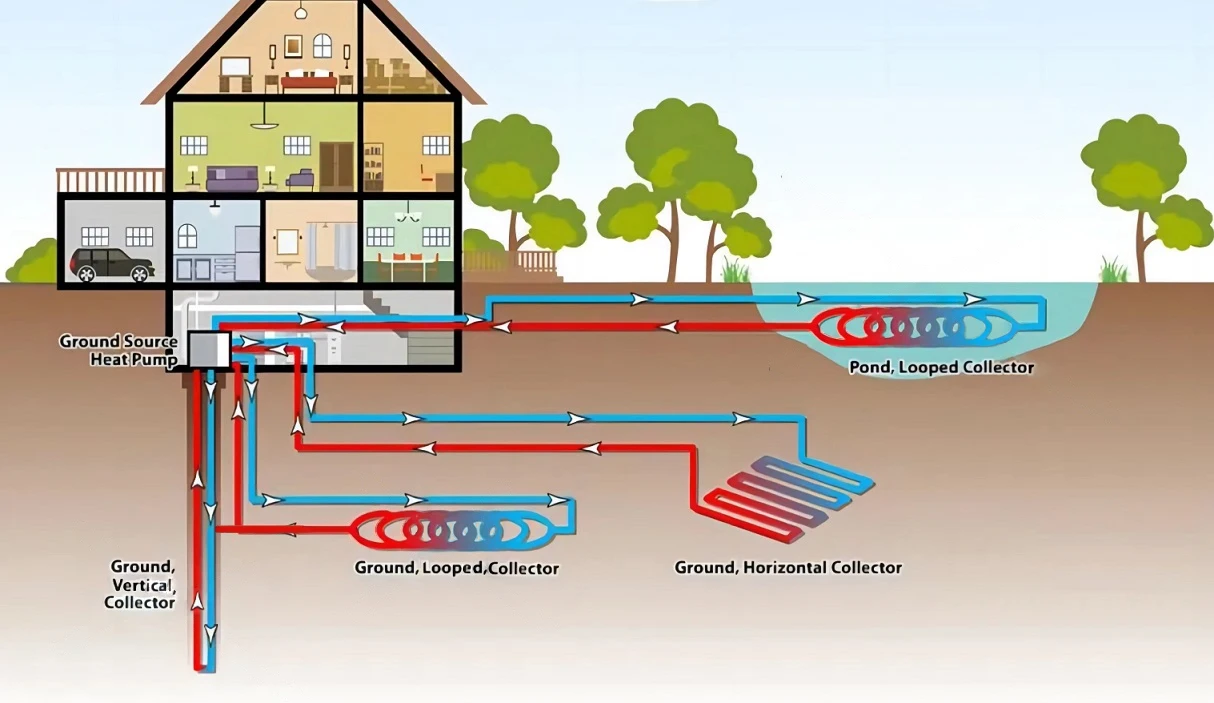

Folansi geothermal water source heat pumps are designed for house heating and hot water heating/cooling function available with COP up to 5.0. t has a maximum heating capacity between 7.0KW and 45KW and a maximum cooling capacity between 6.0KW and 36KW,They have the following important features:
.1 Open Loop System;
.2 Source Side Temp: -10℃ to 35℃;
.3 Control object: using side return water temperature ;
.4 Circulating water pump controlling;
.5 Linkage ON/OFF function by external controlling system signal;
.6 Electric heater back up;
.7 Timer function;
.8 Multiple protections
.9 Setting range: heating 25℃~60℃;
| Name: Geothermal heat pump/Water to water heat pump | ||||
| Model | Unit | FW-10 | ||
| Unit function | Rated heating capacity | kw | 38 | |
| BTU | 129693 | |||
| Hot water supply | T/h | 0.85 | ||
| Rated input power | kw | 7.43 | ||
| Rated heaing input current | A | 15.8 | ||
| COP | 4.84 | |||
| Rated cooling capacity | kw | 30.0 | ||
| BTU/h | 102389 | |||
| Rated input power | kw | 5.8 | ||
| Rated input current | A | 12.6 | ||
| EER | kw/kw | 5.17 | ||
| Max running current | A | 19.75 | ||
| Power | V/Ph/Hz | 220-240V/50HZ/60HZ | ||
| Noise | dB(A) | 38 | ||
| Dimension | Width | mm | 510 | |
| Deepth | mm | 310 | ||
| Height | mm | 620 | ||
| Weight | kg | 65 | ||
| Throttle typ | Electronic expansion valves | |||
| Refrigerate | R410A,R32 | |||
| Max outlet water temp | 60℃ | |||
| Circulation structure | Compressor | Type | panasonic gree | |
| Qty | 1 | |||
| Locked-rotor current | A | 44 | ||
| Security protect functions | Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect | |||
| Water source side heat exchange | Type | Efficient tube in shell heat exchanger /plate heat exchange | ||
| Water flow | m3/h | 1.3 | ||
| Water pressure down | kPa | 9 | ||
| Pipe size | Inch | 1-1∕4 | ||
| Hot water side heat exchange | Type | Efficient tube in shell heat exchanger /plate heat exchanger | ||
| Water flow | m3/h | 5.2 | ||
| Water pressure down | kPa | 14 | ||
| Pipe size | DN | 1-1∕4 | ||
| Working mode | Cooling, heating, hot water, cooling+hot water, heating+hot water | |||
| Circulate water pump | NO | |||
| 1: Rate heating working condtion: heat souce side heat exchanger inlet water temp 15℃, Hot water side heat exchanger beginning of temp 15℃,end of temp 55℃ | |||||||||||
| 2: Rated cooling working: water source side water inlet temp is 18℃,outlet water temp 29℃,use side water inlet water temp 12 ℃,outlet temp 7 | |||||||||||

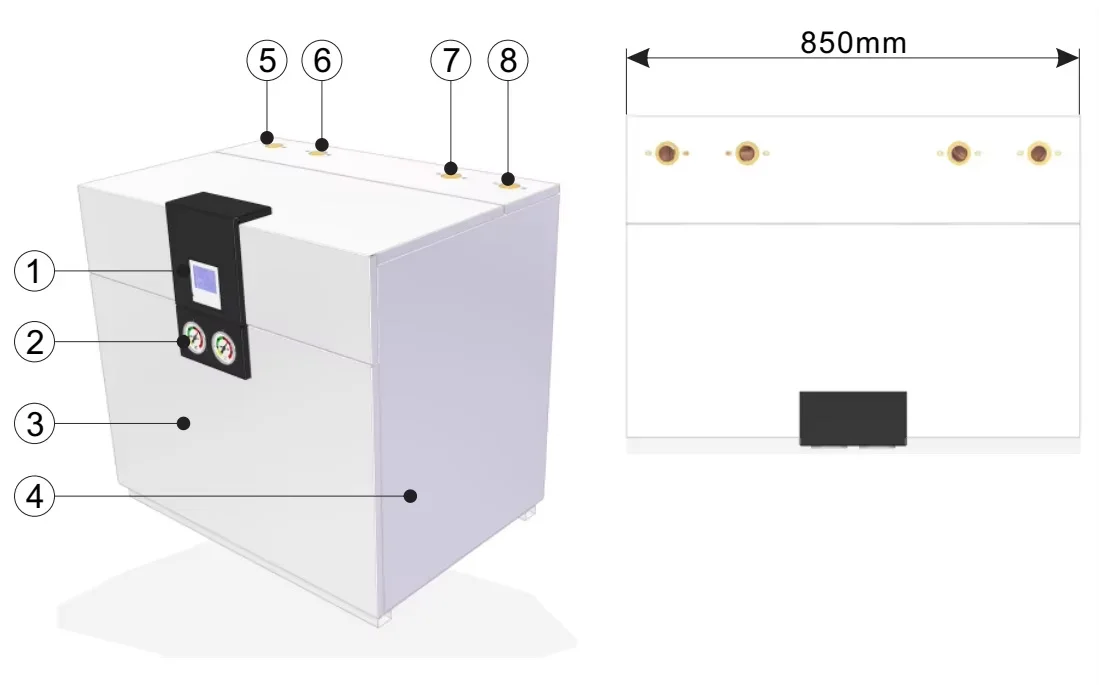

Outer Structure
1.Controller 2.Pressure Gauge 3.Maintenance Pane 4.Side Plate 5.Using side outlet 6.Using side inlet 7.Ground source inlet 8.Ground source outlet

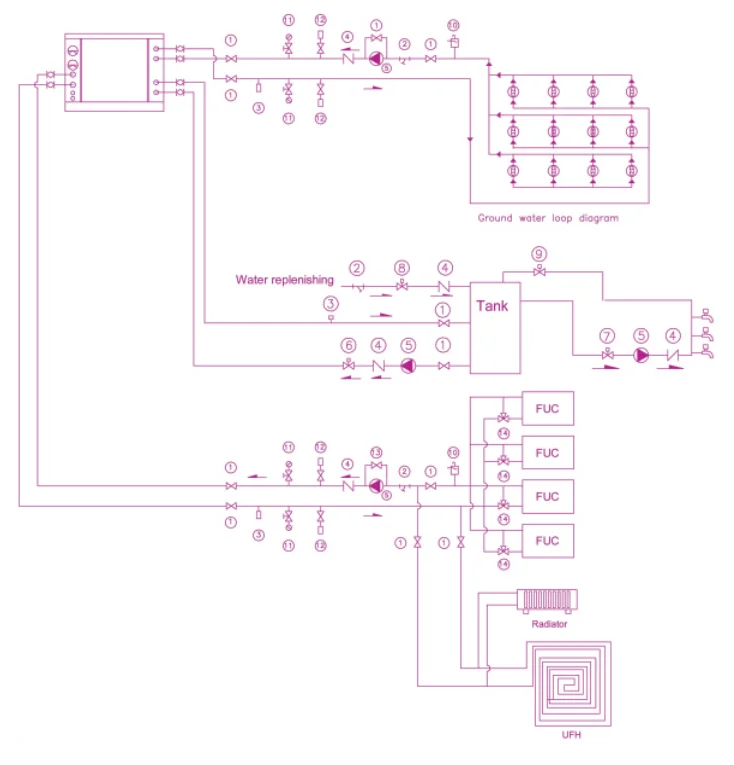

| Installation Instruct |
1 lsolated valve 2 Y- shape filter 3 Flow switch 4 Check vavle 5 Pump 6 Circulating valve 7 Hot water supply valve
8 Cold water supply valve 9 Return valve 10 Expansion drum 11 Manometer 12 Thermometer 13 Bypass valve
14 Three- way valve

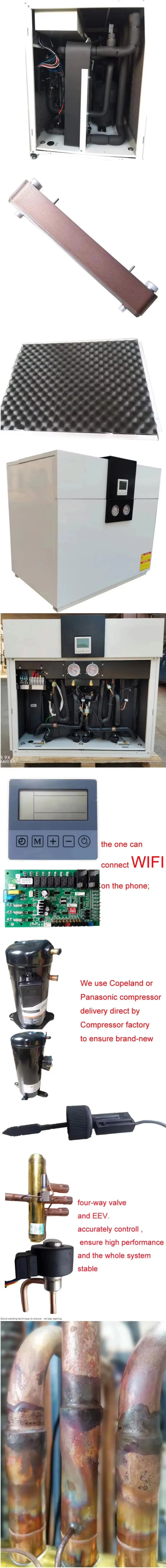

| Materials |

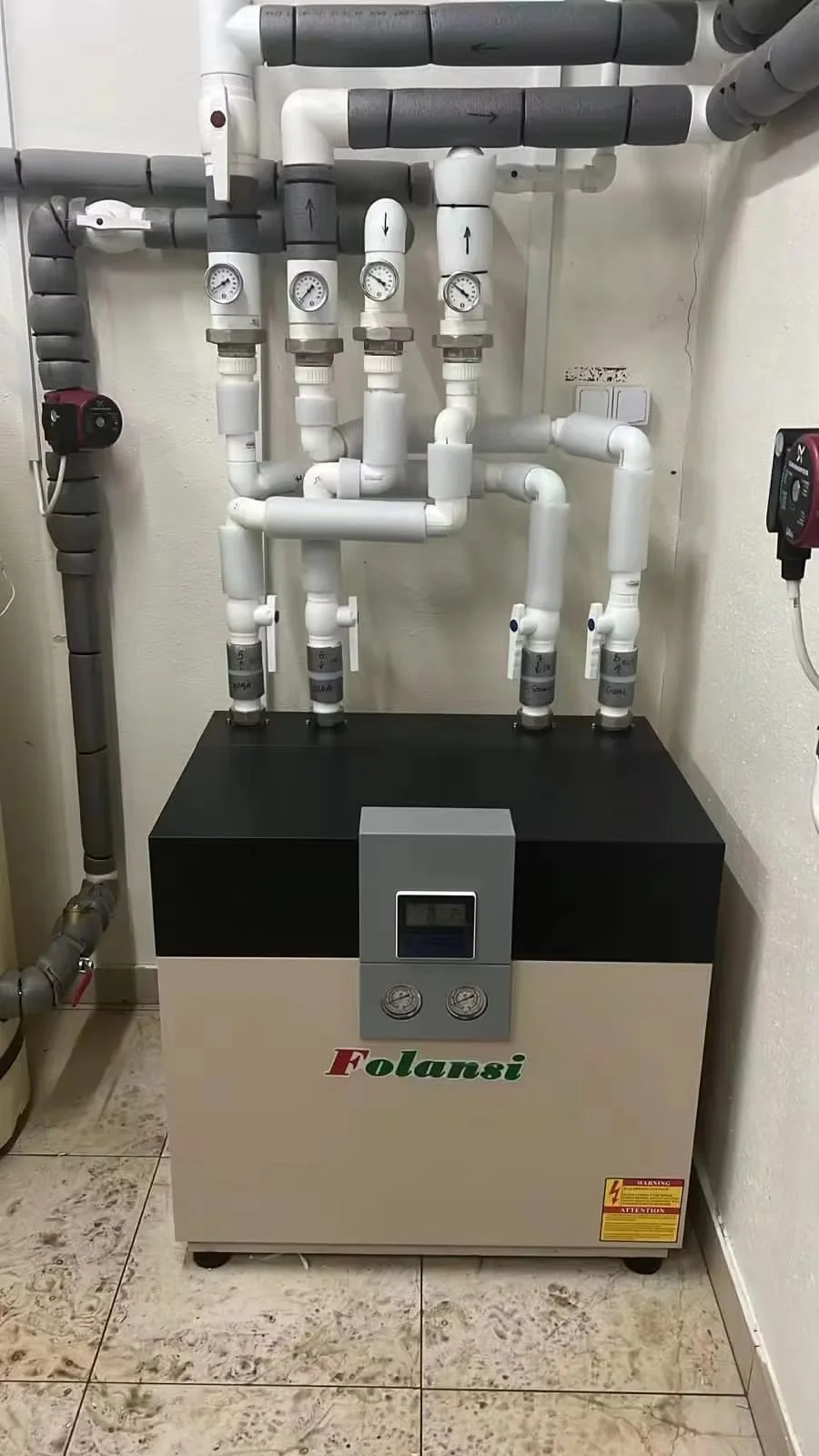

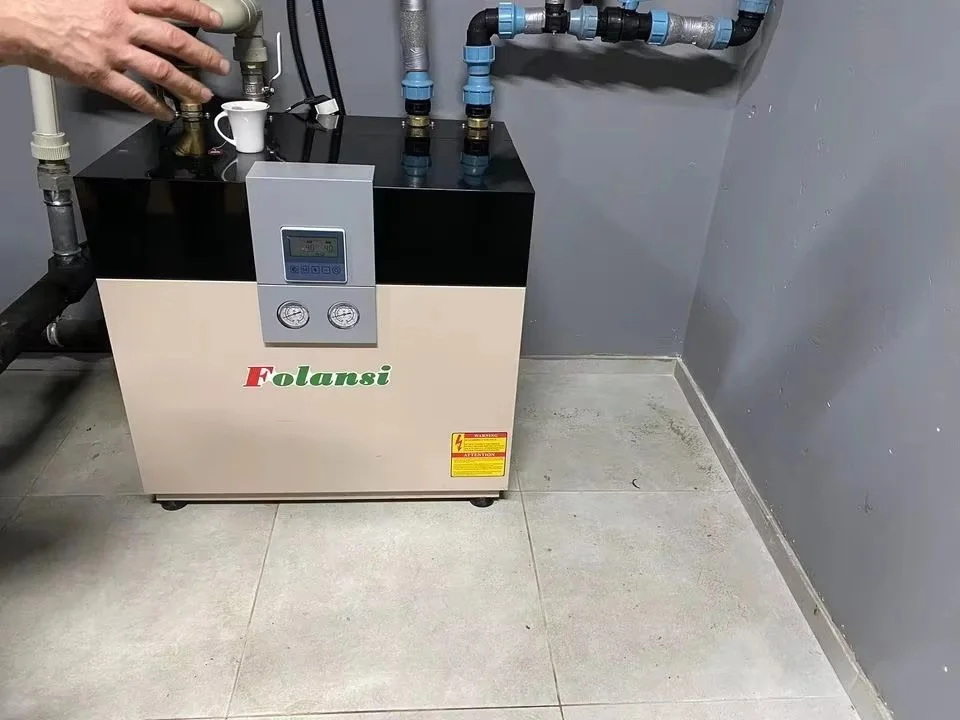

| Customer Photos |
