Product Details:
Payment & Shipping Terms:
|
| Power Source: | Electric | Model Number: | FAC-06 |
|---|---|---|---|
| Function: | House Heating Cooling Hot Water | Housing Material: | powder coating metal or stainless steel metal |
| Application: | Outdoor, Hotel, Garage, Commercial, Household | : | |
| High Light: | |||
Rated cooling working conditions: Air side return air temp 35℃,use side input water temp is 12℃,Outlet water temp is 7℃.
Rated
heating working conditions: Air side return air dry ball temp is 7℃,wet
ball temp is 6℃, use side input water temp 40℃ , outlet water temp is
45℃.

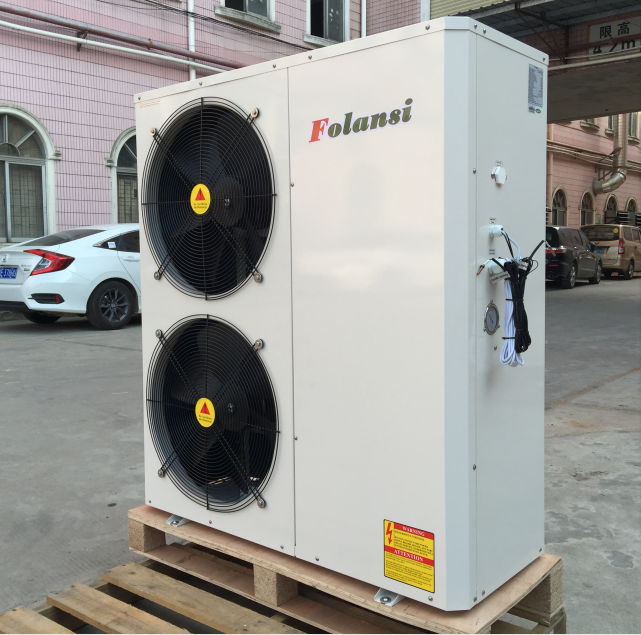

| Model | heat pump | FAC-06 | |||
| Unit functions | Rated heating | Heating capacity | kW | 19.08 | |
| Btu/h | 65119 | ||||
| Rated power | kW | 5.2 | |||
| Rated current | A | 10.5 | |||
| Rated cooling | Cooling capacity | kW | 16.6 | ||
| Btu/h | 56655 | ||||
| Rated power | kW | 5.3 | |||
| Rated current | A | 10.7 | |||
| Max ruuning current | A | 17.2 | |||
| Power | V/Ph/Hz | 380V~415/3N/50Hz/60HZ | |||
| Noise | dB(A) | 58 | |||
| Size | L(A) | mm | 815 | ||
| w(B) | mm | 440 | |||
| H(C) | mm | 1400 | |||
| Weight | kg | 155 | |||
| Operating control | Precision temp precision | ℃ | ±1℃ | ||
| Operation range | ℃ | —20℃~45℃ | |||
| Operation panel | Type | LCD | |||
| Main functions | Operating mode,temperature,operating condition, timing | ||||
| Throttling | Electronic expansion valves | ||||
| The outlet temp | ℃ | 60℃ | |||
| Refrigerate | Type | R410A, R32 | |||
| Compressor | Type | Scroll Copeland, panasonic, | |||
| Qty | Pc | 1 | |||
| Air side heat exchange | Type | Finned heat exchange | |||
| Qty | pc | 1 | |||
| Fan type | Type | Axial big twist angle fan | |||
| Motor power | w | 50w*2 | |||
| Water side heat exchange | Type | tube in shell heat exchanger | |||
| Water flow(summer) | m3/h | 2.53 | |||
| Water flow(winter) | m3/h | 3.11 | |||
| Water pressure down | kpa | 32 | |||
| Connection dimension | Inch | 1 | |||
| Water side max working pressure | KPA | 1000 | |||
| Circulate water pump | No | ||||
| water flow switch | Yes | ||||
