Product Details:
Payment & Shipping Terms:
|
| Application: | Outdoor, Hotel, Garage, Commercial, Household | Outdoor, Hotel, Garage, Commercial, Household: | Electric |
|---|---|---|---|
| Electric: | FAC-015 | Function: | heating and cooling |
| Use: | commercial use and Domestic use | Housing Material: | powder coating metal or stainless steel metal |
| Storage / Tankless: | Instantaneous heater | ||
| High Light: | |||
Rated cooling working conditions: Air side return air temp 35℃,use side input water temp is 12℃,Outlet water temp is 7℃.
Rated
heating working conditions: Air side return air dry ball temp is 7℃,wet
ball temp is 6℃, use side input water temp 40℃ , outlet water temp is
45℃.
| Model | heatpump | FAC-015 | |||
| Unit functions | Rated heating | Heating capacity | kW | 4.8 | |
| Btu/h | 15358 | ||||
| Rated power | kW | 1.15 | |||
| Rated current | A | 4.61 | |||
| Rated cooling | Cooling capacity | kW | 4 | ||
| Btu/h | 12764 | ||||
| Rated power | kW | 1.17 | |||
| Rated current | A | 5.1 | |||
| Max ruuning current | A | 9 | |||
| Power | V/Ph/Hz | 220V~240/1N/50Hz/60HZ | |||
| Noise | dB(A) | 40 | |||
| Size | L(A) | mm | 750 | ||
| w(B) | mm | 300 | |||
| H(C) | mm | 510 | |||
| Weight | kg | 70 | |||
| Operating control | Precision temp precision | ℃ | ±1℃ | ||
| Operation range | ℃ | —20℃~45℃ | |||
| Operation panel | Type | LCD | |||
| Main functions | Operating mode,temperature,operating condition, timing | ||||
| Throttling | Electronic expansion valves | ||||
| The outlet temp | ℃ | 60℃ | |||
| Refrigerate | Type | R410A, R32 | |||
| Compressor | Type | Toshiba,panasonic | |||
| Qty | Pc | 1 | |||
| Air side heat exchange | Type | Finned heat exchange | |||
| Qty | pc | 1 | |||

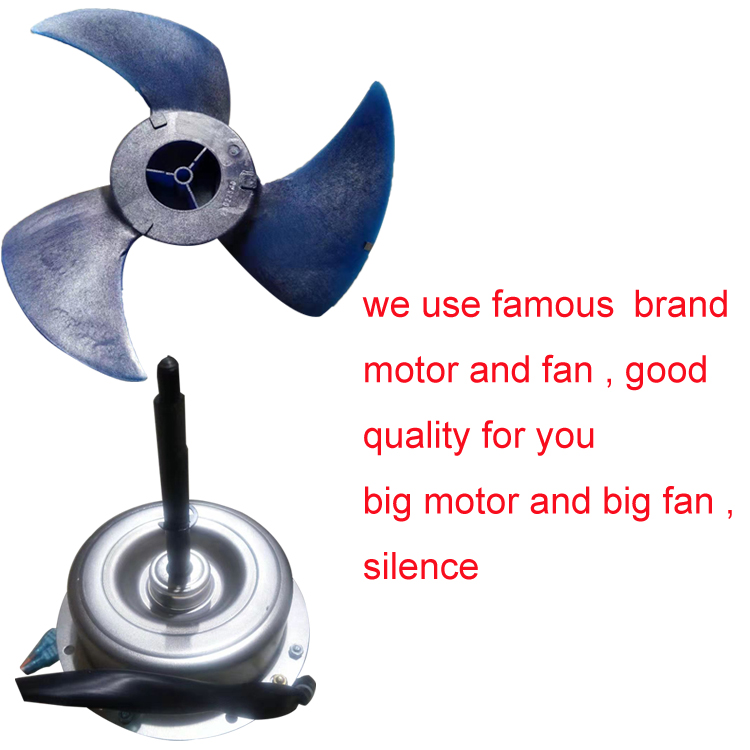

| Fan type | Type | Axial big twist angle fan | |||
| Motor power | w | 40 | |||
| Water side heat exchange | Type | tube in shell heat exchanger | |||
| Water flow(summer) | m3/h | 0.8 | |||
| Water flow(winter) | m3/h | 1 | |||
| Water pressure down | kpa | 20 | |||
| Connection dimension | Inch | 3/4 | |||
| Water side max working pressure | KPA | 1000 | |||
| Circulate water pump | No | ||||
| water flow switch | Yes | ||||

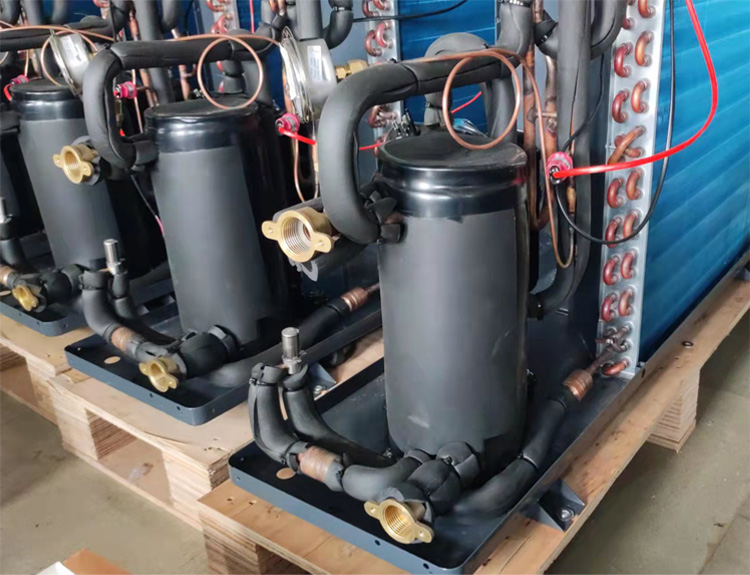

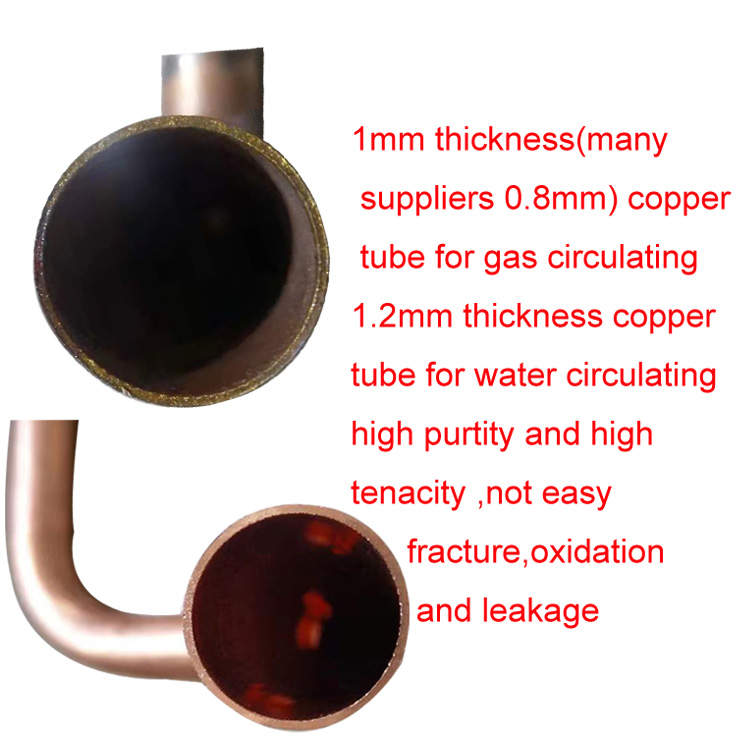

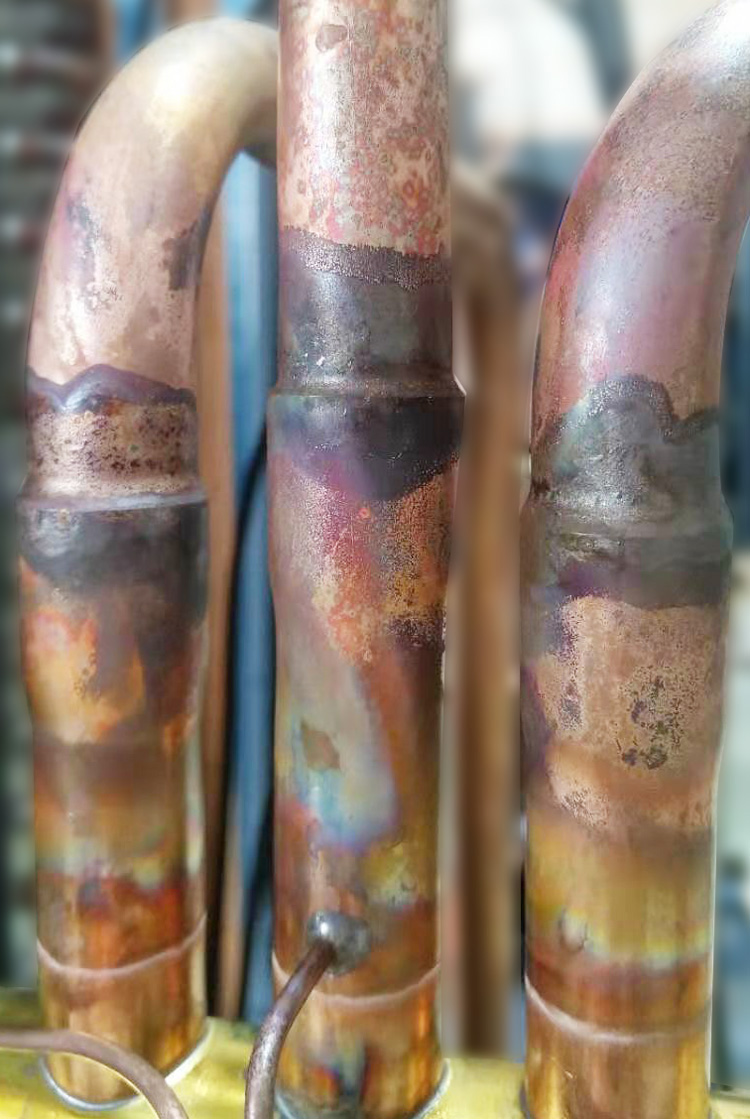

Good welding technology ,not easy leak

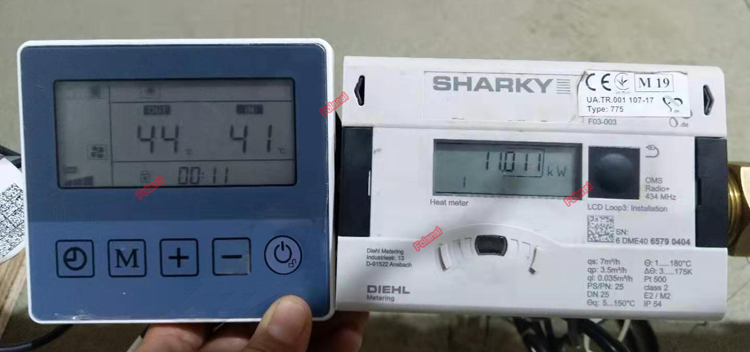

before package,we test everyone machines to confirm if its good energy efficiency ,whether enough heating capacity ,for example model SA-03(11kw) testing
Our Advantages
1) Base frame and external panels made of galvanized powder coated steel
2) Extremely compact structure and good demountability

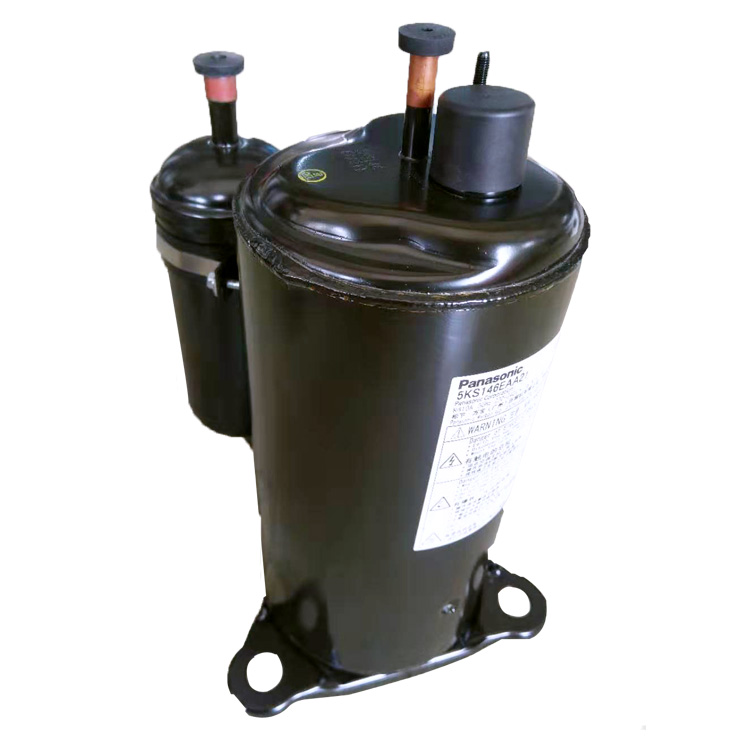

3) Reliable compressor with R410A refrigerant

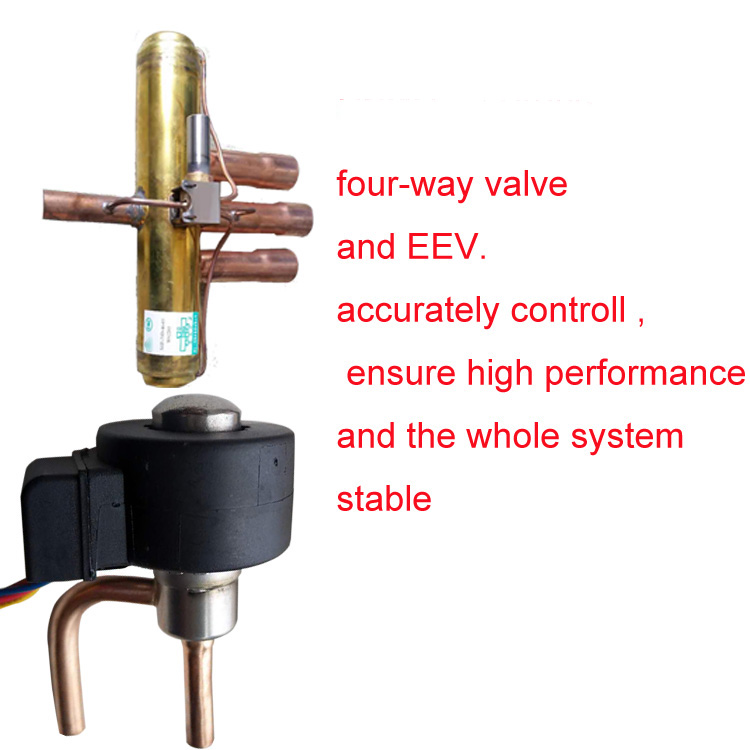

4) Galvanomagnetic reverse valve

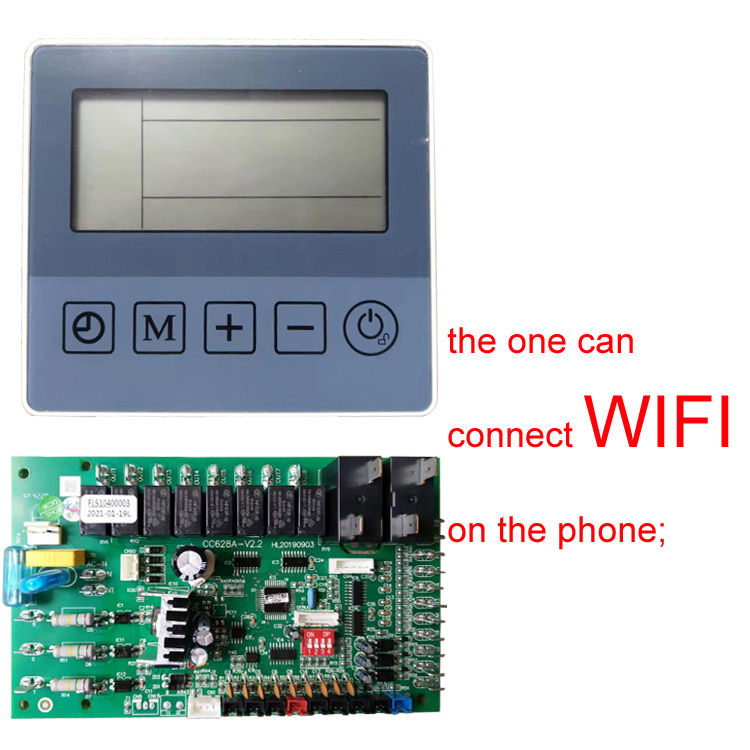

5) Intelligent controller and adjustment by quick mind microprocessor with possibility of remote control

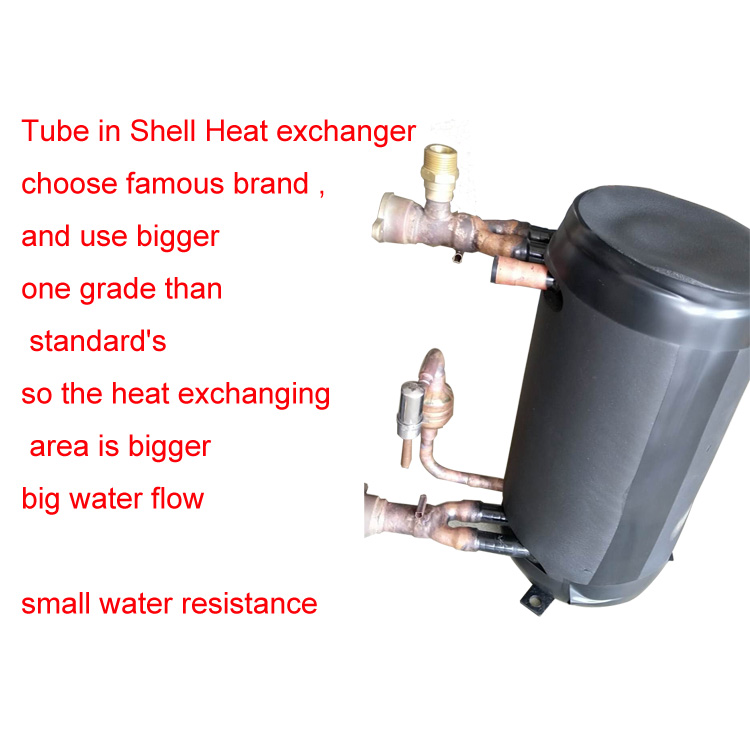

6) Water exchanger equipped with high efficiency tube in shell heat exchanger

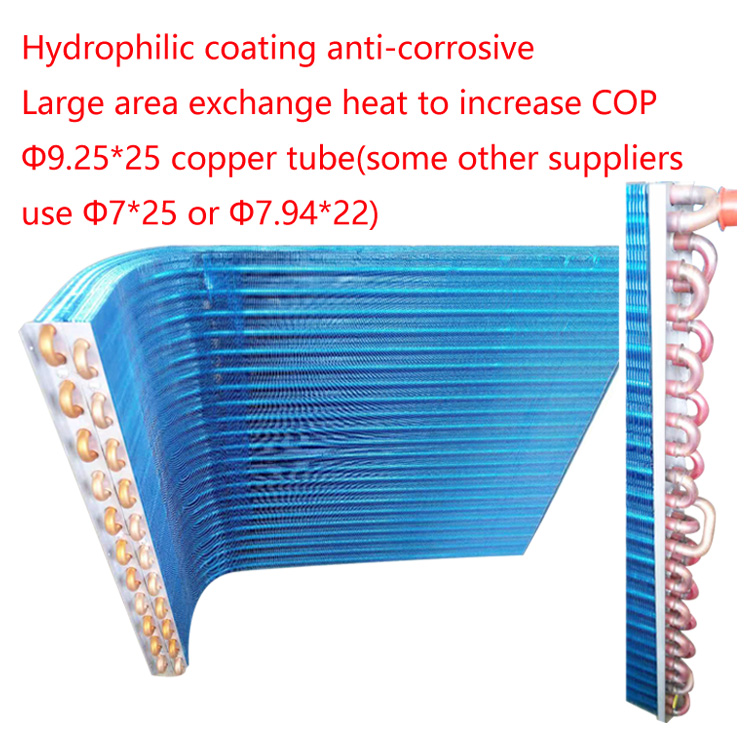

7) Air exchanger (fins-coil) with hydrophilic coating
8) Automatic defrosting function included
9) Thermostatic heating element for evaporator anti-frosting protection
10) Thermostatic or Electric expansion valve
11) General testing and operational test carried out for every unit before package in the factory

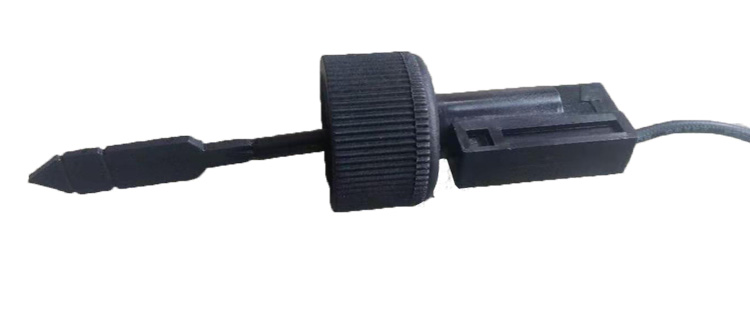

12) Stable water flow switch built-in
protect functions

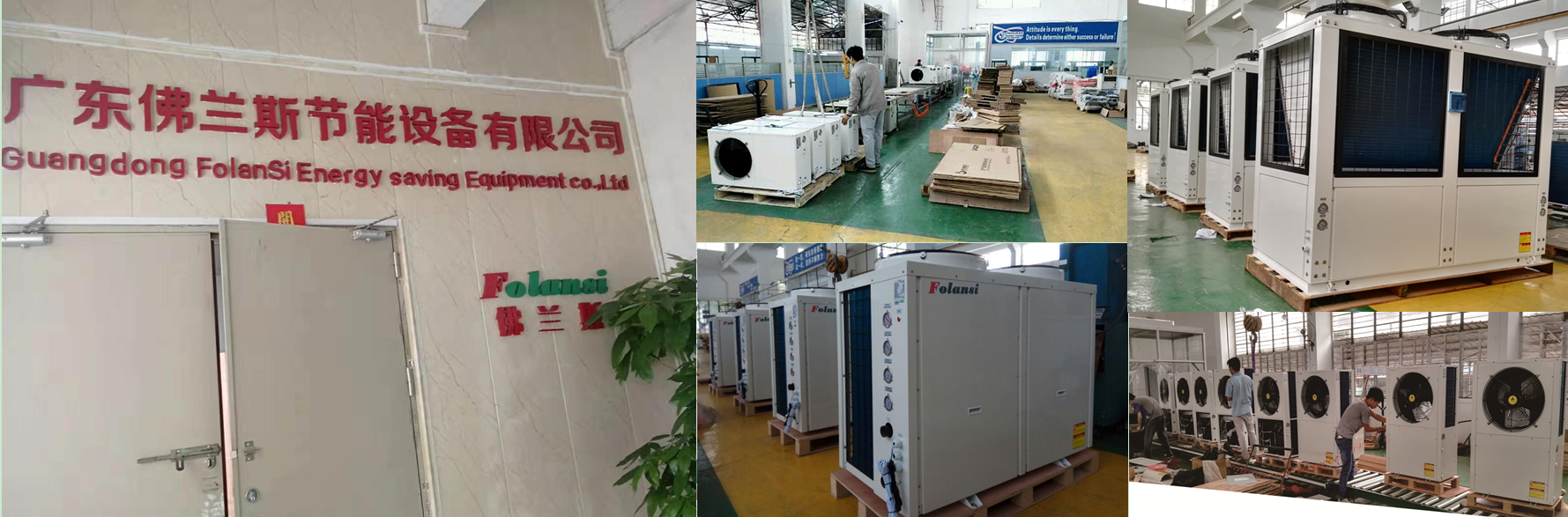

Our factory

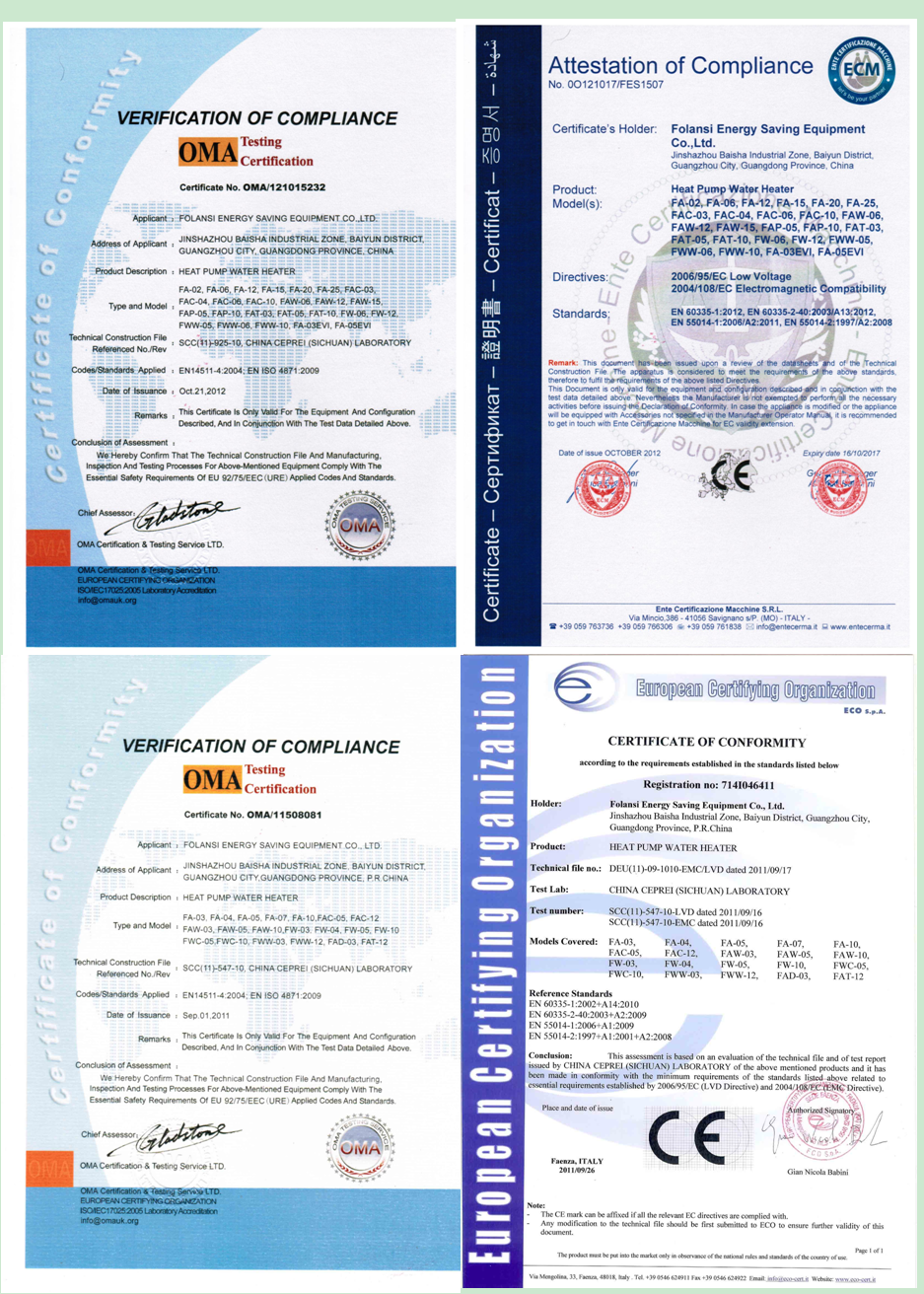

Certifications
we have CE,EN14511,ERP energy efficiency certificate
| Model | heatpump | FAC-015 | |||
| Unit functions | Rated heating | Heating capacity | kW | 4.8 | |
| Btu/h | 15358 | ||||
| Rated power | kW | 1.15 | |||
| Rated current | A | 4.61 | |||
| Rated cooling | Cooling capacity | kW | 4 | ||
| Btu/h | 12764 | ||||
| Rated power | kW | 1.17 | |||
| Rated current | A | 5.1 | |||
| Max ruuning current | A | 9 | |||
| Power | V/Ph/Hz | 220V~240/1N/50Hz/60HZ | |||
| Noise | dB(A) | 40 | |||
| Size | L(A) | mm | 750 | ||
| w(B) | mm | 300 | |||
| H(C) | mm | 510 | |||
| Weight | kg | 70 | |||
| Operating control | Precision temp precision | ℃ | ±1℃ | ||
| Operation range | ℃ | —20℃~45℃ | |||
| Operation panel | Type | LCD | |||
| Main functions | Operating mode,temperature,operating condition, timing | ||||
| Throttling | Electronic expansion valves | ||||
| The outlet temp | ℃ | 60℃ | |||
| Refrigerate | Type | R410A, R32 | |||
| Compressor | Type | Toshiba,panasonic | |||
| Qty | Pc | 1 | |||
| Air side heat exchange | Type | Finned heat exchange | |||
| Qty | pc | 1 | |||
| Fan type | Type | Axial big twist angle fan | |||
| Motor power | w | 40 | |||
| Water side heat exchange | Type | tube in shell heat exchanger | |||
| Water flow(summer) | m3/h | 0.8 | |||
| Water flow(winter) | m3/h | 1 | |||
| Water pressure down | kpa | 20 | |||
| Connection dimension | Inch | 3/4 | |||
| Water side max working pressure | KPA | 1000 | |||
| Circulate water pump | No | ||||
| water flow switch | Yes | ||||
